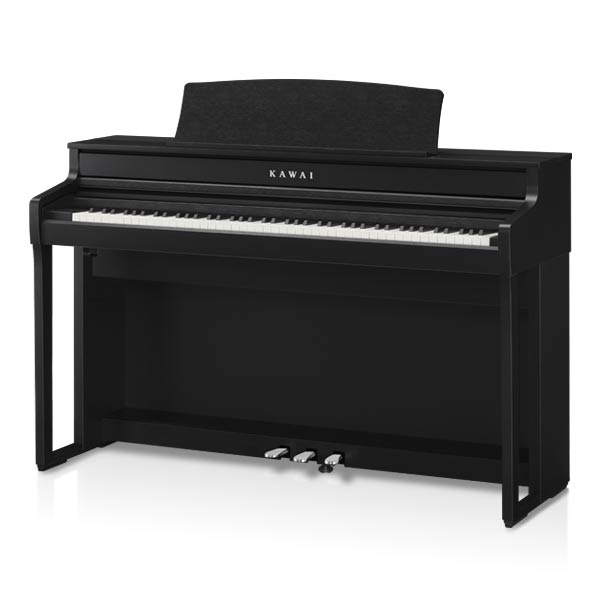

Kawai CA501 Digital Piano

$3,495.00

Color
Shigeru Kawai SK-EX Grand Piano

The Sound of a Grand Piano

Widely regarded as ‘the premier piano of Japan’, the flagship SK-EX grand piano graces the stages of concert halls and musical institutions around the globe, receiving universal acclaim for its tonal clarity and exceptional dynamic range.

The magnificent tone of the SK-EX is at the heart of the CA501, with this new model featuring the latest SK-EX Competition Grand, capturing the sound of the latest generation SK-EX instruments that in recent years have achieved success at the Chopin, Hamamatsu and Sydney International piano competitions.

This piano sound possesses a brilliant, clear tonal character, with a distinctive thick attack, and is specifically recorded from the pianist’s position for the ultimate performance experience.

  • 88-key sampling

    88 Key Sampling

    Every single one of the 88-keys of this world-class instrument are painstakingly recorded, meticulously analysed and accurately reproduces as high-fidelity waveforms.

    Recording each key individually in this way – as opposed to stretching the same tone over several different notes – preserves the grand pianos’ unique harmonic character.

  • Kawai Harmonic Imaging technology

    Harmonic Imaging

    When playing a fine piano, the amount of pressure applied to the keyboard affects not only the volume of the sound produced, but also the unique tonal character of each note.

    The CA501 offers a highly detailed acoustic portrait, employing Kawai’s proprietary Progressive Harmonic Imaging sampling technology to ensure smooth tonal transitions across the keyboard and throughout the entire dynamic range.

  • Piano technician working on a grand piano

    Virtual Technician

    The knowledge and skill of an experienced piano technician is essential to realise the full potential of a fine acoustic piano. In addition to meticulously tuning each note, the technician also performs numerous regulation and voicing adjustments that allow the instrument to truly sing.

    Virtual Technician simulates these refinements digitally, allowing you to shape various aspects of your piano’s character to suit the environment of the piano and your personal preferences.

Kawai Grand Feel compact wooden key action

The Touch of a Grand Piano: Grand Feel Compact wooden key action

The CA501 is the latest Kawai digital piano to utilise the superb Grand Feel Compact wooden-key keyboard action.  As its name suggest, the GF Compact action has been designed to reproduce the authentic touch weight characteristics of the industry-leading Grand Feel keyboard actions, within a smaller form factor.

Kawai GFIII pivot length

Extra-long key & pivot length

This action retains the long wooden keysticks used for all 88 black and white keys, and the familiar ‘seesaw’ mechanism employed by acoustic grand piano actions for centuries.

However, despite its smaller unit size, GF Compact features an extended key pivot length, providing a more consistent touch weight when playing towards the rear of the keyboard.  This crucial detail, along with various other acoustic piano-like characteristics, ensures the CA501 delivers the most realistic playing experience in its class.

Kawai digital piano triple sensor

Triple sensor key detection

The Grand Feel Compact keyboard action also features an accurate triple-sensor key detection system for enhanced playing realism.

The added third sensor improves responsiveness when playing the same key repeatedly, and unlike conventional two sensor keyboard actions found in many digital pianos, allows the sound of a single note to be gradually ‘layered’ without the previous tone being lost.

In addition, Kawai’s action technology also monitors the speed at which each key is lifted, influencing the release character of piano sounds, and providing a greater range of expression between staccato and legato playing.

Ebony and ivory touch key surfaces

Ivory Touch key surfaces

The impressive CA501 features Kawai’s highly regarded Ivory Touch white key surfaces as standard.  This finely textured material gently absorbs fingertip perspiration and oils to assist playing control, and possesses a natural, matte finish that is smooth but not slippery.

Furthermore, this moisture is absorbed without dirt or grease permeating the surface, allowing the keytops to be wiped clean easily using just a damp cloth.

Kawai CA501 speaker system

Powerful 4-speaker output system

The CA501 boasts a powerful 100W, 4-speaker output system that closely mirrors the sound projection of a grand piano, with lower-range frequencies delivered through the underside of the instrument, and mid to high-range frequencies projected outward via top-mounted speakers.

Kawai speaker diffusers

360° Speaker Diffusers

In addition to utilising high-quality driver units, the CA501’s top-mounted speakers also feature custom-engineered diffuser panels, which help to expand the piano's tonal projection in all directions.

These additional components create a 360° sound field around the instrument, ensuring a natural piano sound for both the player, and those listening elsewhere in the room.

Kawai CA501 bluetooth connectivity

Integrated Bluetooth® connectivity

In addition to a standard USB-MIDI port for connecting to computers, the CA501 also features integrated Bluetooth® MIDI and Audio technologies that allow the instrument to communicate with supported smart devices wirelessly.



Once paired with a phone, tablet, or laptop, CA501 owners can enjoy a wide variety of exciting music-related apps that enhance their learning and playing experience, or stream audio from songs and videos directly through the instrument’s impressive speaker system without the need to connect additional cables.

Kawai CA501 using PianoRemote app

PianoRemote app

The CA501 is compatible with Kawai’s latest PianoRemote control app for iOS and supported Android devices. This app connects to the piano wirelessly via the Concert Artists’ integrated Bluetooth feature, providing an effortless way to change sounds, adjust settings, or enjoy the vast array of built-in music content from the comfort of an armchair.

Playing Kawai CA501 digital piano through headphones

Superior Headphone Experience

The CA501’s Spatial Headphone Sound (SHS) technology enhances the depth and realism of the instrument’s sound when listening through headphones or earphones. The player can select one of three different acoustic presets that adjust the spatial positioning of the sound, while also helping to reduce auditory fatigue when using earphones or headphones for extended periods of time.

In addition, the CA501 also allows players to select a variety of headphone types (Open, Semi-open, Closed, In-Ear, Canal, etc.) for an optimised listening experience.

  • USB thumb drive connected to Kawai CA501

    Flexible USB Connectivity

    In addition to wireless functionality, the CA501 is also equipped with USB ports that allow the instrument to be connected directly to a computer for MIDI use, or to load and save data to USB memory devices.

    This latter USB to Device functionality allows favourite instrument settings, registrations, and memorable recorder songs stored within internal memory to be safely preserved on USB flash drives, or for standard MIDI files (SMF) downloaded from the internet to be played back and enjoyed using the instrument’s exquisite Harmonic Imaging XL sounds without additional hardware or cables.

  • Pedals of the Kawai CA701 digital piano

    Grand Feel Pedal System

    The Grand Feel Pedal feature accurately replicates the position and individual weighting of the damper, soft, and sostenuto pedals of a Shigeru Kawai SK-EX concert grand piano, ensuring that players master the proper pedalling technique required to perform on an acoustic piano.

  • Making notes on music

    Broad Adjustable Music Rest

    The CA501’s broad music rest is engineered to accommodate the most ambitious musical works, with smoothly rounded edges, a sturdy base for supporting large score books, and score support pins to hold everything in place.

    As with a grand piano, the viewing angle of the instrument’s music rest can be adjusted to suit the performer’s playing position, or laid flat for convenience when notating scores or sketching musical ideas.

SPECIFICATIONS
Keyboard Grand Feel Compact action

- 88 wooden keys
- Grade-weighted hammers
- Ivory Touch key surfaces
- Let-off simulation
- Triple sensor key detection
- Bass Region Counterweights
Pedal Grand Feel Pedal System

- Sustain (with half-pedal support)
- Soft (with half-pedal support)
- Sostenuto
Piano Sound Progressive Harmonic Imaging (PHI)

- 88-key piano sampling
- Shigeru Kawai SK-EX-L Competition Grand
- Shigeru Kawai SK-5 Chamber Grand
- Kawai EX Concert Grand
- K-60 Upright
- 256 note maximum polyphony
Piano Resonance - Damper Resonance
- String Resonance
- Undamped String Resonance
- Cabinet Resonance
Piano Adjustment Virtual Technician Smart Mode: 10 types
Advanced Mode: 21 parameters
No. of Sounds 45 voices
Reverb 6 Types Room, Lounge, Small Hall, Concert Hall,
Live Hall, Cathedral
Effects 24 Types
Other Functions Reverb, Effects, Dual, Split, Four Hands, Registration Memories, Panel Lock, Key Transpose, Song Transpose, Tone Control, Speaker Volume, Low Volume Balance, Tuning, Damper Hold, Startup Setting, Factory Reset,
Auto Display Off, Auto Power Off, MIDI Settings, USB Menu
Speakers 13 cm, x 2
8 x12 cm, x 2 (top speakers with diffusers)
Output Power 50 W + 50 W
Display 128 X 64 pixels OLED
Key Cover Sliding type
Music Rest Collapsible type (3 positions)
With Score Support Pins
Dimensions Width 56" (142.5 cm)
Depth 19" (48.5 cm)
Height 36.66" (93 cm) (music rest down)
Weight 145.5 lbs (66 kg)
Available Finishes Premium Satin Black (CA501B)

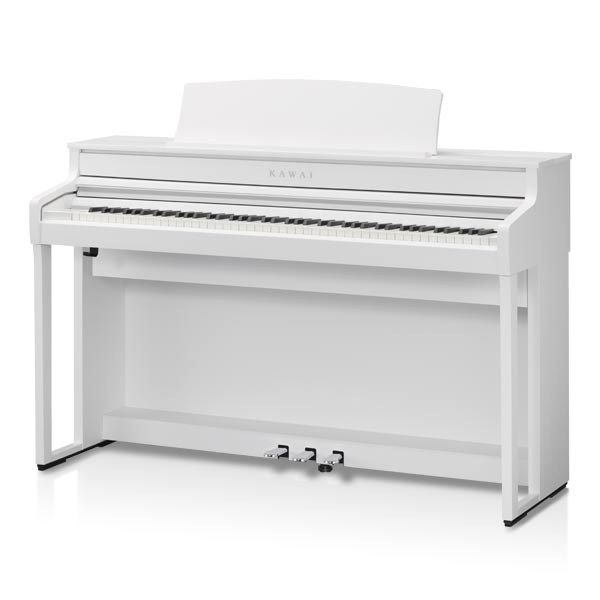

Premium Satin White (CA501W)

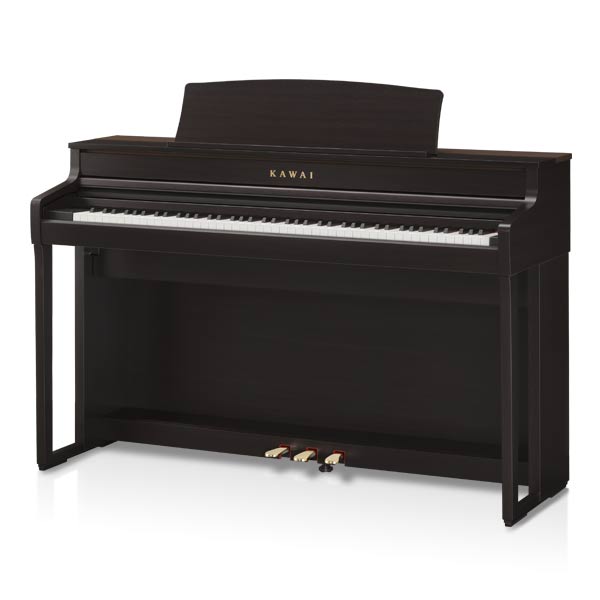

Premium Rosewood (CA501R)
Basic Functions Dual
Four Hands
Transpose
Tuning
Startup Setting
Vocal Assist
Sound Preview
Internal Songs Demo Songs 33 songs
Piano Music 42 songs (depending on market location)
Concert Magic 176 songs
Lesson Songs Burgmüller 25 (25 Etudes Faciles, Opus 100)
Czerny 30 (Etudes de Mécanisme, Opus 849)
Czerny 100 (Hundert Übungsstücke, Opus 139)
Beyer 106 (Vorschule im Klavierspiel, Opus 101)
J.S. Bach: Inventionen
Sonatinen Album 1
Chopin Walzer (Chopin waltzes series)
Alfred’s Premier Piano Course Lesson 1A
Alfred’s Premier Piano Course Lesson 1B
Alfred’s Basic Piano Library Lesson Book Lvl A
Alfred’s Basic Piano Library Lesson Book Lvl 1B
Alfred’s Basic Adult Piano Course Lesson Book Lvl 1
Lesson Books Sold Separately
Internal Recorder No. of Songs 10 songs, 2 track recorder
Total Memory Max 10,000 notes
USB Recorder Play & Record MP3/WAV, Overdub MP3/WAV
Metronome 10 Time Signatures 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8
Drum Rhythms 100
Bluetooth® * MIDI: (Ver. 5.0; GATT compatible) Bluetooth
Low Energy MIDI Specification-compliant
AUDIO: (Ver. 5.1 A2DP-compatible)
Availability of Bluetooth function dependent on market location
App Functions iOS/Android Piano Remote
PiaBookPlayer
Connector Jacks Headphone 1 x ¼”, 1 x ⅛” Stereo
Audio LINE IN: 1/4" L/MONO, R
LINE OUT: 1/4" L/MONO, R
MIDI/USB USB to Host, USB to Device
Power Consumption 12 W
Power 30 W (PS-242 AC adapter)
Bench Matching Bench
Headphones Spatial Headphone
Sound
3 Presets: Normal, Forward, Wide, (Off)


Headphone hook
Others Warranty Card *
Owner's Manual
